SM06.1984 Alnico V Alnico magnetic system with 19mm diameter, 8mm thickness and 4,2mm countersunk hole. It contains an AlNiCo V magnet. The pulling force is 2,08 Kg. Max temperature resistance: 650 °C Axial magnetization
SM06.1983 Alnico V Alnico magnetic system with 19mm diameter, 8mm thickness and 3,2mm countersunk hole. It contains an AlNiCo V magnet. The pulling force is 2,5 Kg. Max temperature resistance: 650 °C Axial magnetization
SM05.1284 Threaded Hole Neodymium magnetic system with 12mm diameter, 8mm thickness and a 4mm threaded hole with M4 thread. It contains an N52 magnet. The pulling force is 4,00 Kg. Max temperature resistance: 80°C
SM05.1985 Threaded Hole Neodymium magnetic system with 19mm diameter, 8mm thickness and a 6mm threaded hole with M5 thread. It contains an N52 magnet. The pulling force is 14,00 Kg. Max temperature resistance: 80°C
SM05.2585 Threaded Hole Neodymium magnetic system with 25mm diameter, 8mm thickness and a 5,5mm threaded hole with M5 thread. It contains an N52 magnet. The pulling force is 31,00 Kg. Max temperature resistance: 80°C
SM08.3085 Threaded Rod Neodymium magnetic system with 30mm diameter, 8mm thickness and a 16mm threaded rod with M5 thread. It contains an N35 magnet with an additional waterproof resin coating. The pulling force is 18,00 Kg. Max temperature resistance: 60°C
SM08.3085 Threaded Rod & Inox Cup Neodymium magnetic system with 30mm diameter, 8mm thickness and a 16mm threaded rod with M5 thread. It contains an N52 magnet with an additional waterproof resin coating. This magnet has an INOX cup, granting total resistance against rust. The pulling force is 3,00 Kg. Max temperature resistance: 60°C
SM09.2585 Straight Hole Neodymium magnetic system with 25mm diameter, 8mm thickness and a 5mm passing hole. It contains an N35 magnet. The pulling force is 17,00 Kg . Max temperature 80 °C
SM23.128 N42 Superpot Threaded Hole Neodymium magnetic system with 12mm diameter, 8mm thickness and a 4mm threaded hole with M4 thread. It contains an N42 magnet. The pulling force is 5,50 Kg. Max temperature resistance: 80°C
SM23.198 N42 Superpot Threaded Hole Neodymium magnetic system with 19mm diameter, 8mm thickness and a 4mm threaded hole with M5 thread. It contains an N42 magnet. The pulling force is 16,00 Kg. Max temperature resistance: 80°C
SM23.2585 N42 Superpot Threaded Hole Neodymium magnetic system with 25mm diameter, 8mm thickness and a 5mm threaded hole with M5 thread. It contains an N42 magnet. The pulling force is 31,00 Kg. Max temperature resistance: 80°C
Neodymium magnetic block Neodymium magnet with 12 mm length, 7 mm width and 8 mm thickness. This magnet is N35 nickel coated with axial magnetization. The pulling force is 3,28 Kg . Max temperature 80° C
SM30.2508 Countersunk Hole Neodymium magnetic system with 25mm diameter, 8mm thickness and a 11/5,5mm passing countersunk hole. It contains an N35 magnet. The pulling force is 22,00 Kg. Max temperature resistance: 80°C
SM30.3208 Countersunk Hole Neodymium magnetic system with 32mm diameter 8mm thickness and a 11/5,5mm passing countersunk hole. It contains an N35 magnet. The pulling force is 42,00 Kg. Max temperature resistance: 80°C
SM30.3608 Countersunk Hole Neodymium magnetic system with 36mm diameter 8mm thickness and a 12/6,5mm passing countersunk hole. It contains an N35 magnet. The pulling force is 46,00 Kg. Max temperature resistance: 80°C
SM31.2508 Straight Hole Neodymium magnetic system with 25mm diameter, 8mm thickness and a 5,5/9 mm passing hole. It contains an N35 magnet. The pulling force is 19,00 Kg. Max temperature resistance: 80°C
SM31.3608 Straight Hole Neodymium magnetic system with 36mm diameter, 8mm thickness and a 6,5/11mm passing hole. It contains an N35 magnet. The pulling force is 49,00 Kg. Max temperature resistance: 80°C
SM31.3208 Straight Hole Neodymium magnetic system with 32mm diameter, 8mm thickness and a 5,5mm passing hole. It contains an N35 magnet. The pulling force is 45,00 Kg. Max temperature resistance: 80°C
SM32.2508 Threaded Rod Neodymium magnetic system with 25mm diameter, 8mm thickness and a 10mm threaded rod with M5 thread. The magnet is surrounded by an outer plastic ring, ensuring stronger structural integrity. The pulling force is 25,00 Kg. Max temperature resistance: 80°C
SM32.3208 Threaded Rod Neodymium magnetic system with 32mm diameter, 8mm thickness and a 10mm threaded rod with M6 thread. It contains an N35 magnet fixed by an outer plastic ring. The pulling force is 42,00 Kg. Max temperature resistance: 80°C
Neodymium magnetic disc Neodymium magnet with 3 mm diameter and 8 mm thickness marked. You will find a red dot that indicates the pole where is marked. This magnet is N35 nickel coated with axial magnetization. The pulling force is 0,38 Kg . Max temperature 80° C
SM33.2508 Screw Socket Neodymium magnetic system with 25mm diameter, 8mm thickness and a 7,6mm threaded socket with M5 thread. It contains an N35 magnet. The pulling force is 25,00 Kg. Max temperature resistance: 80°C
Neodymium magnetic disc Neodymium magnet with 4 mm diameter and 8 mm thickness. This magnet is N48 nickel coated with axial magnetization. The pulling force is 0,75 Kg . Max temperature 80° C
Neodymium magnetic disc Neodymium magnet with 5 mm diameter and 8 mm thickness. This magnet is N35 nickel coated with axial magnetization. The pulling force is 0,80 Kg . Max temperature 80° C
Neodymium magnetic disc Neodymium magnet with 8 mm diameter and 8 mm thickness. This magnet is N35 nickel coated with axial magnetization. The pulling force is 1,90 Kg . Max temperature 80° C
Neodymium magnetic disc Neodymium magnet with 10 mm diameter and 8 mm thickness. This magnet is N35 nickel coated with axial magnetization. The pulling force is 2,90 Kg . Max temperature 80° C
SM33.3208 Screw Socket Neodymium magnetic system with 32mm diameter, 8mm thickness and a 10mm threaded socket with M6 thread. It contains an N35 magnet. The pulling force is 43,00 Kg. Max temperature resistance: 80°C
Neodymium magnetic disc Neodymium magnet with 12 mm diameter and 8 mm thickness. This magnet is N35 nickel coated with axial magnetization. The pulling force is 3,73 Kg . Max temperature 80° C

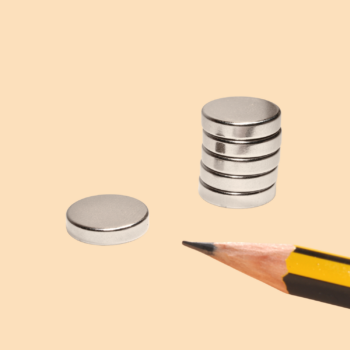

Neodymium magnetic disc Neodymium magnet with 13 mm diameter and 8 mm thickness. This magnet is N35 nickel coated with axial magnetization. The pulling force is 4,20 Kg . Max temperature 80° C
Neodymium magnetic disc Neodymium magnet with 14 mm diameter and 8 mm thickness. This magnet is N35 nickel coated with axial magnetization. The pulling force is 4,70 Kg . Max temperature 80° C
Neodymium magnetic disc Neodymium magnet with 15 mm diameter and 8 mm thickness. This magnet is N35 nickel coated with axial magnetization. The pulling force is 5,20 Kg . Max temperature 80° C
Neodymium magnetic disc Neodymium magnet with 19 mm diameter and 8 mm thickness. This magnet is N35 nickel coated with axial magnetization. The pulling force is 10,00 Kg . Max temperature 80° C
Neodymium magnetic disc Neodymium magnet with 20 mm diameter and 8 mm thickness. This magnet is N35 nickel coated with axial magnetization. The pulling force is 8,80 Kg . Max temperature 80° C
Ferrite magnetic ring Ferrite magnet with 60mm outer diameter, 24mm inner diameter and 8mm thickness. The pulling force is n.d. Kg. Max temperature: 250 °C Axial magnetization
Neodymium magnetic Ring Neodymium magnet with 18mm outer diameter, 8mm inner diameter and 8mm thickness. This magnet is N35, nickel coated, with axial magnetization. The pulling force is 6,73Kg. Max temperature 80 °C
Neodymium rubberized disc Neodymium magnet with 30 mm diameter, 8 mm thickness and threaded hole M4. This magnet is N35 nickel coated with axial magnetization. The pulling force is 8,00 Kg . Max temperature 80° C
Neodymium rubberized disc Neodymium magnet with 34 mm diameter, 8 mm thickness and Countersunk hole 4,5mm. This magnet is N35 nickel coated with axial magnetization. The pulling force is 7,80 Kg . Max temperature 80° C
Neodymium rubberized disc Neodymium magnet with 66 mm diameter, 8 mm thickness and threaded hole M6. This magnet is N35 nickel coated with axial magnetization. The pulling force is 20,00 Kg . Max temperature 80° C
Neodymium rubberized disc Neodymium magnet with 88 mm diameter, 8 mm thickness and threaded hole M8. This magnet is N35 nickel coated with axial magnetization. The pulling force is 42,00 Kg . Max temperature 80° C
Neodymium magnetic Ring Neodymium magnet with 39,5mm outer diameter, 19mm inner diameter and 8mm thickness. This magnet is N35, nickel coated, with axial magnetization. The pulling force is 16,20 Kg. Max temperature 80 °C
Neodymium magnetic Ring Neodymium magnet with 70mm outer diameter, 32mm inner diameter and 8mm thickness. This magnet is N35, nickel coated, with axial magnetization. The pulling force is 30,00 Kg. Max temperature 80 °C
Neodymium magnetic block Neodymium magnet with 18 mm length, 15 mm width and 8 mm thickness. This magnet is N35 nickel coated with axial magnetization. The pulling force is 7,80 Kg . Max temperature 80° C
Neodymium magnetic block Neodymium magnet with 20 mm length, 18 mm width and 8 mm thickness. This magnet is N35 nickel coated with axial magnetization. The pulling force is 7,00 Kg . Max temperature 80° C
Neodymium magnetic block Neodymium magnet with 35 mm length, 14 mm width and 8 mm thickness. This magnet is N35 nickel coated with axial magnetization. The pulling force is 12,10 Kg . Max temperature 80° C
Neodymium magnetic block Neodymium magnet with 40 mm length, 10 mm width and 8 mm thickness. This magnet is N35 nickel coated with axial magnetization. The pulling force is 10,20 Kg . Max temperature 80° C
Neodymium magnetic block Neodymium magnet with 40 mm length, 10 mm width and 8 mm thickness. This magnet is N35 zinc coated with axial magnetization. The pulling force is 10,62 Kg . Max temperature 80° C
SM22.1985 Threaded Hole Neodymium magnetic system with 19mm diameter, 8mm thickness and a 4mm threaded hole with M5 thread. It contains an N35 or an N42 magnet and an additional, transparent resin coating. The pulling force is 6,00 Kg. Max temperature resistance: 60°C
Neodymium magnetic disc Neodymium magnet with 28 mm diameter and 8 mm thickness. This magnet is N35 nickel coated with axial magnetization. The pulling force is 11,50 Kg . Max temperature 80° C
